Pumps with decentralized drive technology

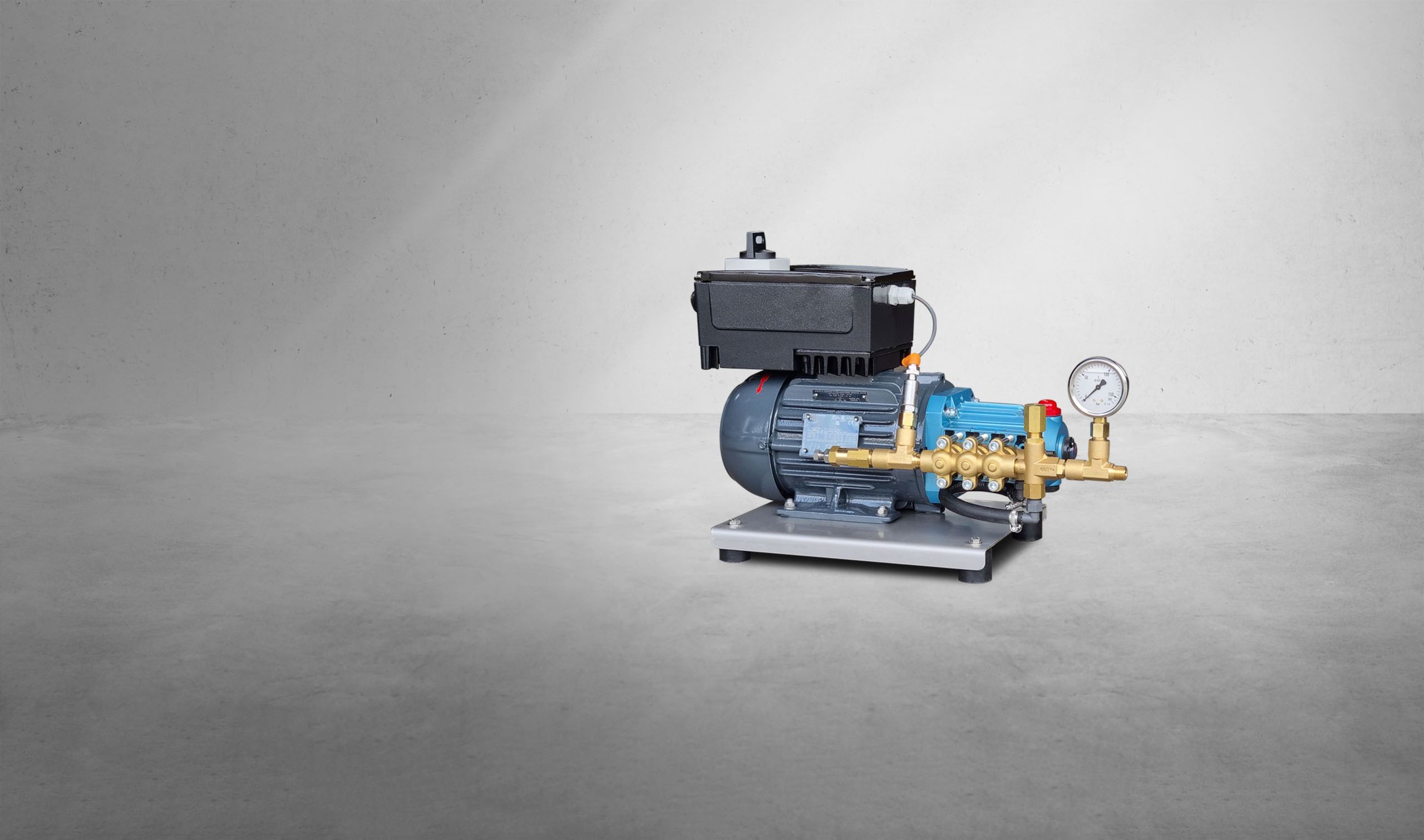

This unit has been designed for air humidification with variable consumption quantities. In its compact design, it is particularly space-saving and completely prepared for connection with the mounted frequency converter.

High pressure units for air humidification

Features of the high pressure pump

Pump head corrosion resistant brass
Plunger hard ceramic (solid)
Stainless steel valves, valve seats and springs
Seals made of a special material
Integrated leakage recirculation
Quiet running
Crankcase made of a die-cast aluminum
Forged CrMo steel crankshaft

Functions

Supply voltage 230 V (single-phase)
Lockable main switch
Potentiometer for setting the operating pressure
Pressure transmitter for the detection of the actual pressure
External potential-free release (start/stop)
Optionally possible with standby operation (external release not necessary)
3 m cable with straight plug
Stainless steel base plate

Functional description

As soon as the start signal is given externally, the frequency inverter regulates exactly to the operating pressure set at the potentiometer. In the event of changing consumption quantities (switching nozzles off or on), the speed and thus the flow rate are adapted to the demand.

The use of this technology ensures that the water system runs at an optimum level, thus saving energy and protecting the hydraulic components compared to conventional systems. Smooth starting and stopping also prevents pressure surges in pipelines.
