High Pressure Piston Pump

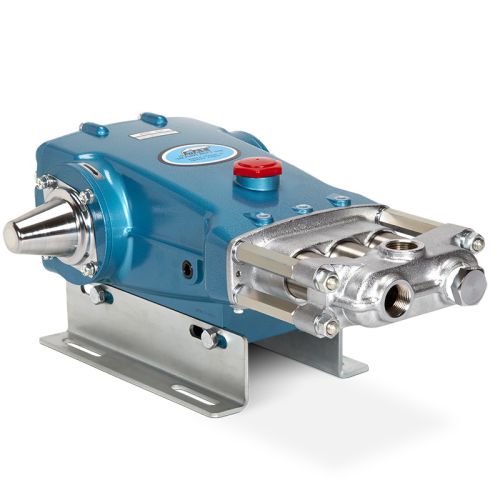

This triplex (three piston rods) positive displacement, reciprocating piston pump is constructed with chrome-plated brass manifolds, 304 stainless steel valve assemblies, and chrome-plated 304 stainless steel sleeves and cylinders. Multiple piston cup and seal configurations are available with NBR (Buna-N) O-rings.

The lower RPM belt drive design provides strong inlet suction and long-lasting pump and seal life.

Technical Specifications

  • Flow
    95 l/min
  • Max. pressure
    55 bar
  • RPM
    772 min-1
  • Inlet Port Size
    1 1/4”
  • Discharge Port Size
  • Material

Data Sheets

Service Manual

Operating Instructions

CAD Drawings
