High Pressure Plunger Pump · Frame size 35 PFR 3535

Name: 3535
Brand: CAT PUMPS
SKU: 3535

This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with chrome-plated brass manifolds, 304 stainless steel valve assemblies, solid ceramic plungers and standard NBR (Buna-N) seals and O-rings.

Request this pump Data sheet (PDF) Spare parts

Technical specifications

Flow rate	136.3 l/min
Operating pressure	83 bar
Speed	800 min⁻¹
Inlet port	1 1/2" NPT(F)
Discharge port	1" NPT(F)
Shaft diameter	35 mm
Material	Brass

Downloads

CAD files

Spare parts

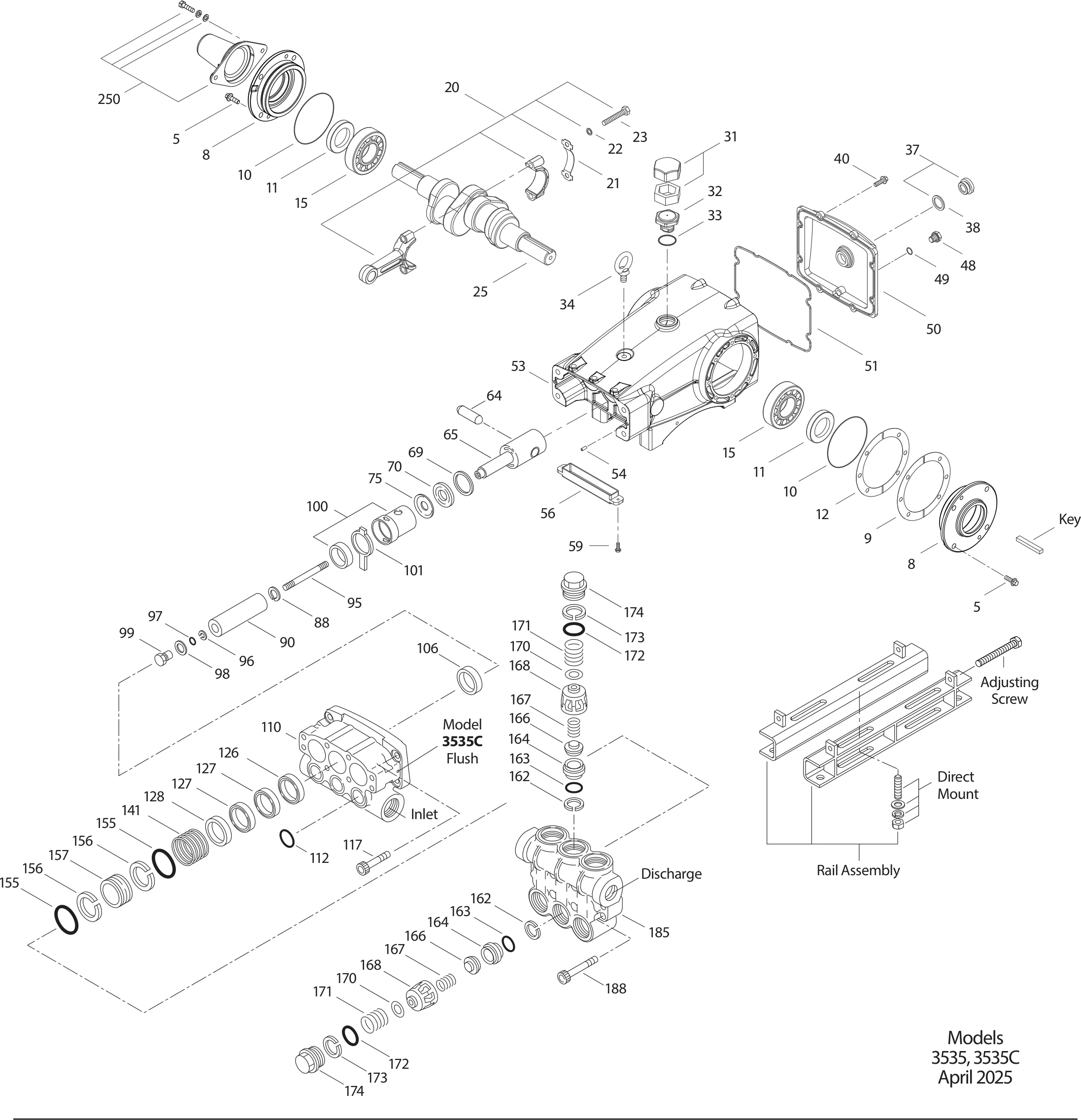

Click an item in the drawing or in the parts list to add it to your request list. We turn it into a quotation – no order is placed.

6 kits bundle wearing parts of this pump ↓

Skip the drawing, go to the parts list

Parts list

Item	Part no.	Description	Qty
5	96049	Screw, HHC Sems (M10x25)S	8
8	134604	Cover, Bearing [06/18]ALE	2
9	815279	Shim, Split, 2-Piece 0 - 2FBR	2
10	12398	O-Ring, Bearing Cover - 70DNBR	2
11	13296	Seal, Oil, Crankshaft 0 - 2NBR	2
12	855049	Shim, Split, 2-Piece 0 - 2S
15	29326	Bearing, RollerSTL	2
20	121467	Rod, Connecting Assembly (Includes: 21, 22, 23) (Model 3521C)TNM	3
21	126749	Washer, Locking (M10)STCP	3
22	126593	Washer, Flat (M10.5)STCP	6
23	122045	Screw, HH (M10x55)STZP	6
25	29325	Crankshaft, Dual End (M48)FCM	1
31	828710	Protector, Oil Cap with Foam Gasket 1PE	1
32	43211	Cap, Oil FillerABS	1
33	14177	O-Ring, Oil Filler Cap - 70DNBR	1
34	126743	Bolt, Eye (M12x1.75) (For Lifting Pump Only)STCP	1
37	92241	Gauge, Oil, Bubble with Gasket - 80D 1 - 2PC	1
38	44428	Gasket, Flat, Oil Gauge - 80DNBR	1
40	125753	Screw, HHC, Sems (M8 x 25) (Model 2530E)S	8
48	25625	Plug, Drain (1/4" x 19 BSP[M])STCP	1
49	23170	O-Ring, Drain Plug - 70DNBR	1
50	45936	Cover, Rear (See Tech Bulltin 118)ALE	1
51	16612	O-Ring, Cover - 70DNBR	1
53	134784	Crankcase Assembly (Includes 54)ALE	1
54	27488	Pin, GuideS	2
56	27790	Pan, OilPOP	1
59	92538	Screw, HHC, Sems (M6 x 16) (Model 2530E)S	2
64	43864	Pin, CrossheadCM	3
65	45116	Rod, Plunger (Model 3521C)SSZZ	3
69	126587	Washer, Oil SealSTCP	3
70	100488	Seal, Oil, CrankcaseNBRS	3
75	43865	Slinger, BarrierS	3
88	45676	Washer, Keyhole (M16)S	3
90	43921	Plunger (M40 x 145)CC	3
95	89778	Stud, Plunger Retainer (M10x135)SS	3
96	20189	Back-up-Ring, Plunger RetainerPTFE	3
97	11345	O-Ring, Plunger Retainer - 70DNBR	3
98	44085	Gasket, Plunger Retainer (M7) Model 3501, 3501C, Gasket, Plunger Retainer (M10) Model 3511, 3511CSS	3
99	44084	Retainer, Plunger (M10)SS	3
100	814279	Retainer, Seal, 2-PiecePVDF	3
101	44112	Wick, Long Tab	3
106	44113	Seal, Low-Pressure, with SS-SpringNBR	3
110	49464	Manifold, Inlet - (Models 3570, 3570S)BBCP	1
112	11379	O-Ring, Inlet Manifold - 70DNBR	3
117	44585	Screw, HSH (M14x40)S	4
126	46494	Adapter, FemaleBB	3
127	44609	V-PackingSTG	6
128	43928	Adapter, MaleBB	3
141	49519	Spring, Large CoilSS	3
155	48860	O-Ring, V-Packing Cylinder - 90DNBR	6
156	48362	Backup Ring, V-Packing, Spacer, OuterD	6
157	49478	Spacer, V-PackingBB	3
162	48363	Backup-Ring, Valve SeatD	6
163	26142	O-Ring, Seat - 80DNBR	6
164	44727	Seat, SteppedS	6
166	43932	ValveS	6
167	44109	Spring, ValveSS	6
168	44728	Retainer, SpringPVDF	6
170	44729	Washer, Spring RetainerSS	6
171	44644	Coil Spring (70kg), Valve PlugSS	6
172	89827	O-Ring, Valve Plug - 90DNBR	6
173	48364	Backup-Ring, Valve PlugD	6
174	46444	Plug, Valve [02/06]FBB	6
185	49465	Manifold, DischargeBBCP	1
188	89981	Screw, HSH (M12 x 70)S	8
250	855042	Protector, Shaft with Two (2) Screws, Lockwashers and WashersPOP	1
–	6124	Gasket, Liquid (3 oz. / 0,1 l)	1
–	30278	Oiler (1 oz) (Not Shown) 3	3
–	30696	Reverse Pliers (Not Shown)	1
–	32273	Crankcase Oil Seal Removal and Installation Kit (Not Shown)	1
–	34018	Mount, Direct (STZP R)	1
–	34021	Key (M10 x 8 x 70) 1	1
–	34314	Kit, Oil Drain (3/8" x 48") (Not Shown)	1
–	80540	Screw, Adjusting (M12 x 100) 2	2
–	92674	Mount, Rail Assembly (STZP R) (Includes: 34018)	1
–	670305	Manifold, Inlet, Flushed (Model 3520C)BBCP	1
–	818427	Head, Complete with NBR Seals and O-Rings (Model 3535HS)	1
–	819000	Assembly, Crankcase, Cast Iron Conversion (Not Shown) 1	1
–	990013	Hub, "B", 35 mm (STL) 1	1
–	6133	Oil, Crankcase, Can 4l	1
