High Pressure Plunger Pump · Frame size 5CP

5CP3104

This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with a brass manifold, 304 stainless steel valve assemblies, solid ceramic plungers and standard NBR (Buna-N) seals and O-rings.

Data sheet (PDF) Make an enquiry

Technical specifications

Flow rate 6.1 l/min
Operating pressure 250 bar
Speed 1,450 min⁻¹
Inlet port 1/2"
Discharge port 3/8"
Shaft diameter 20 mm
Material Brass

Downloads

CAD files

Spare parts

Click an item in the drawing or in the parts list to add it to your request list. We turn it into a quotation – no order is placed.

6 kits bundle wearing parts of this pump ↓

Skip the drawing, go to the parts list

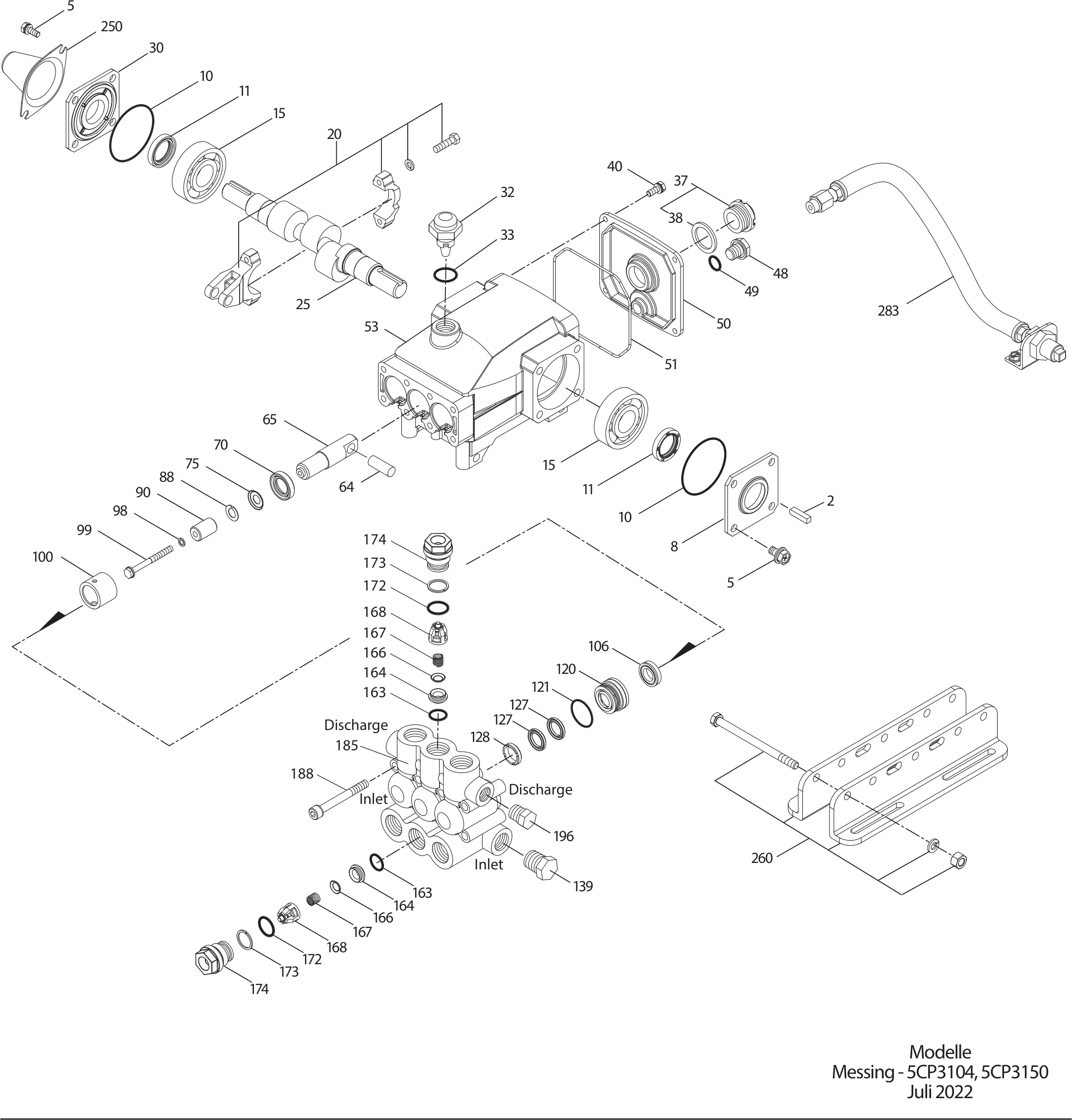

Exploded view

Exploded view 5CP3104

Parts list

ItemPart no.DescriptionQtyAdd to request list
230057Key (M6 x 6 x 25)STL1
5126542Screw, HHC, Sems (M8x16) 8-8-4STCP8
846910Cover, Bearing 2/1/2AL2
1014028O-Ring, Bearing Cover - 70D 2-2-1NBR2
1143222Seal, Oil, Crankshaft 2/1/2NBR2
1514480Bearing, Ball 2-2-2STL2
2048742Rod, Connecting Assembly [10/01]TNM3
2548395Crankshaft, Dual End M7.2 - (5CP3104)FCM1
3246798Cap, Oil Filler, Domed1
3314179O-Ring, Oil Filler Cap - 70DNBR1
3792241Gauge, Oil, Bubble with Gasket - 80D 1 - 2PC1
3844428Gasket, Flat, Oil Gauge - 80DNBR1
40125824Screw, HHC Sems (M6x16) 8/4STCP4
4825625Plug, Drain (1/4" x 19 BSP[M])STCP1
4923170O-Ring, Drain Plug - 70DNBR1
5046940Cover, RearAL1
5114044O-Ring, Rear CoverNBR1
5348617CrankcaseAL1
6446746Pin, CrossheadCM3
6548458Rod, PlungerBBNP3
7046838Seal, Oil, Crankcase - 70DNBR3
7543900Slinger, BarrierS3
8845697Washer, Keyhole (M18 x 10)S3
9046884Plunger (M16x50)CC3
9846730Washer, Seal - 90DNBR3
9948201Retainer, Plunger with Stud (M6)SS3
10046749Retainer, SealPVDF3
10643316Seal, Low-Pressure with S-SpringNBR3
12046888Case, Seal (Press-in-style)BB3
12113978O-Ring, Seal Case - 70D (Models 4SP29ELR, ELU)NBR3
12743319V-Packing (Model 550)SNG6
12846618Adapter, MaleNY3
13922179Plug, Inlet (1/2" NPT[M]) (Not Shown)BBCP1
16317547O-Ring, Seat - 85DNBR6
16445790SeatS6
16646429ValveS6
16743750Spring, ValveS6
16844565Retainer, Spring, DischargePVDF6
17217549O-Ring, Valve Plug - 70DNBR6
17348365Backup Ring, Valve PlugD6
17445900Plug, ValveBB6
18546886Manifold, HeadFBB1
188126513Screw, HSH (M8x70)STCP8
19622187Plug, Discharge (3/8" NPT[M]) (Not Shown)BBCP1
250118672Protector, Shaft (Model 5CP5120)STCP1
25530243Mount, Direct (Belt-Drive Only)STZP1
260126610Mounting, Angle Rail (STZP R)STZP1
26530659Kit, Complete Mounting (Inclds: 30611, 30633, 118672) (Belt Drive Only)1
28334334Kit, Oil Drain (3/8" x 24") (Not Shown) 11
299814843Head, Complete w/NBRSeals and O-RingsFBB1
–11685O-Ring, Seat - 85DFPM6
–14329O-Ring, Seal CaseFPM3
–26996O-Ring, Valve Plug - 70DFPM6
–46287V-PackingHT6
–46648O-Ring, Seat - 70DEPDM6
–48394Washer, Seal - 90DFPM3
–48432Washer, SealEPDM3
–48646Crankshaft, Dual End M20 - (5CP3150)FCM1
–48904O-Ring, Seal CaseEPDM3
–49133O-Ring, Valve PlugEPDM6
–49134Seal, LPS w/S-SpgEPDM3
–76316Seal, LPS w/S-SpgST23
–106660Seal, LPS w/S-SpgFPM3
–6132Oil, Crankcase, Bottle 1l1

in the request listcovered by a requested kit

Seal and valve kits

A kit bundles the wearing parts of one assembly. Selecting it highlights the items it covers in the drawing and the parts list – once requested, they stay marked.

Seal kits

  • Seal kit

    33629

    NBR (STD)Medium Nitrile (Buna-N)

    contains 5 items · one kit per pump

    Parts list
    • 9846730Washer, Seal3×
    • 10643316Seal, Low-Pressure with S-Spring3×
    • 12113978O-Ring, Seal Case3×
    • 12743319V-Packing6×
    • 12846618Adapter, Male3×

  • Seal kit

    31665

    HT (0.3000)Hi-Temp (EPDM Alternative)

    contains 5 items · one kit per pump

    Parts list
    • 9846730Washer, Seal3×
    • 10643316Seal, Low-Pressure with S-Spring3×
    • 12113978O-Ring, Seal Case3×
    • 12746287V-Packing6×
    • 12846618Adapter, Male3×

  • Seal kit

    76556

    STHT (0.3400)Special PTFE High Temp

    contains 6 items · one kit per pump

    Parts list
    • 9846730Washer, Seal3×
    • 10676316Seal, Low-Pressure with S-Spring3×
    • 12046888Case, Seal3×
    • 12113978O-Ring, Seal Case3×
    • 12746287V-Packing6×
    • 12846618Adapter, Male3×

Valve kits

  • Valve kit

    33060

    NBR (STD)Medium Nitrile (Buna-N)

    contains 8 items · 2 kits per pump

    Parts list
    • 16317547O-Ring, Ventilsitz3×
    • 16445790Ventilsitz3×
    • 16646429Ventil3×
    • 16743750Feder, Ventil3×
    • 16844565Federhalter, Ventil3×
    • 17217549O-Ring, Ventilstopfen3×
    • 172142807O-Ring, Valve Plug3×
    • 17348365Stützring, Ventilstopfen3×

  • Valve kit

    31345

    FPM (0.0110)Fluorocarbon

    contains 7 items · 2 kits per pump

    Parts list
    • 16311685O-Ring, Ventilsitz3×
    • 16445790Ventilsitz3×
    • 16646429Ventil3×
    • 16743750Feder, Ventil3×
    • 16844565Federhalter, Ventil3×
    • 17226996O-Ring, Ventilstopfen3×
    • 17348365Stützring, Ventilstopfen3×

  • Valve kit

    31735

    EPDM (0.0220)Ethylene Propylene Diene Monomer

    contains 7 items · 2 kits per pump

    Parts list
    • 16346648O-Ring, Ventilsitz3×
    • 16445790Ventilsitz3×
    • 16646429Ventil3×
    • 16743750Feder, Ventil3×
    • 16844565Federhalter, Ventil3×
    • 17249133O-Ring, Ventilstopfen3×
    • 17348365Stützring, Ventilstopfen3×
