High Pressure Plunger Pump · Frame size 5CP 5CP6190 Alternate specification

Name: 5CP6190 (Alternate specification)
Brand: CAT PUMPS
SKU: 5CP6190

This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with a chrome-plated brass manifold, 304 stainless steel valve assemblies, solid ceramic plungers and standard NBR (Buna-N) seals and O-rings.

Alternate specification of the 5CP6190 with a different operating point: 30.3 l/min, 100 bar, 1,450 min⁻¹. Standard version: 37.9 l/min, 100 bar, 1,750 min⁻¹. View standard version

Request this pump Data sheet (PDF) Spare parts

Technical specifications

Flow rate	30.3 l/min
Operating pressure	100 bar
Speed	1,450 min⁻¹
Inlet port	1/2" NPT(F)
Discharge port	3/8" NPT(F)
Shaft diameter	20 mm
Material	Brass

Downloads

CAD files

STEP – 5CP6190 (catpumps.com)

Spare parts

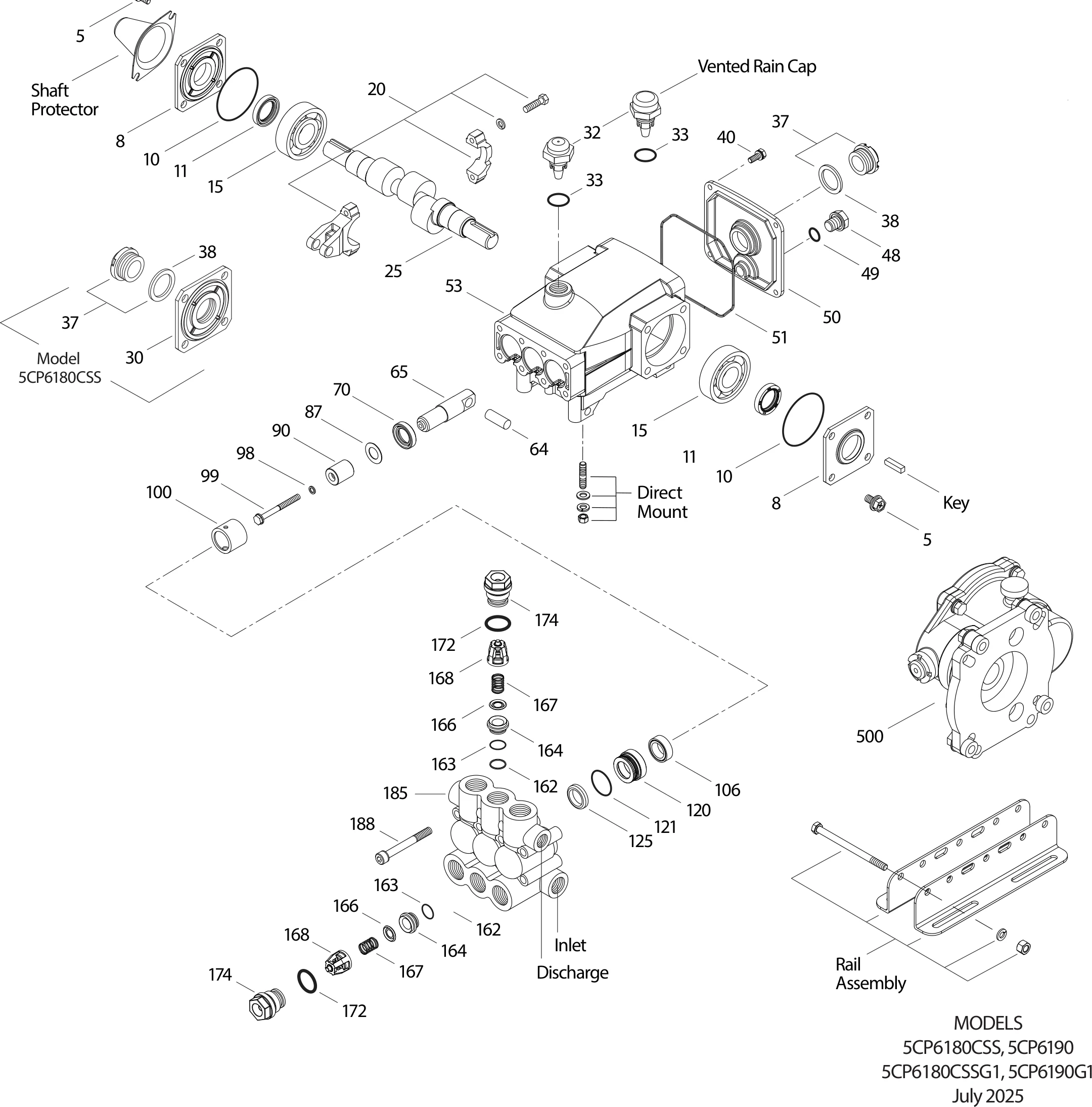

Click an item in the drawing or in the parts list to add it to your request list. We turn it into a quotation – no order is placed.

7 kits bundle wearing parts of this pump ↓

Skip the drawing, go to the parts list

Parts list

Item	Part no.	Description	Qty
5	126542	Screw, HHC, Sems (M8x16) 8-8-4STCP	8
8	46910	Cover, Bearing 2/1/2AL
10	14028	O-Ring, Bearing Cover - 70D 2-2-1NBR	2
11	43222	Seal, Oil, Crankshaft 2/1/2NBR
15	14480	Bearing, Ball 2-2-2STL	2
20	48742	Rod, Connecting Assembly [10/01]TNM	3
25	48646	Crankshaft, Dual End M20 - (5CP3150)FCM	1
30	49776	Cover, Bearing - 5CP3120CSS, 5CP3120CSSG1 [After 12/10]AL	1
32	46798	Cap, Oil Filler, Domed	1
33	14179	O-Ring, Oil Filler Cap - 70DNBR	1
37	92241	Gauge, Oil, Bubble with Gasket - 80D 1 - 2PC
38	44428	Gasket, Flat, Oil Gauge - 80DNBR
40	125824	Screw, HHC Sems (M6x16) 8/4STCP	4
48	25625	Plug, Drain (1/4" x 19 BSP[M])STCP	1
49	23170	O-Ring, Drain Plug - 70DNBR	1
50	46940	Cover, RearAL	1
51	14044	O-Ring, Rear CoverNBR	1
53	48617	CrankcaseAL	1
64	46746	Pin, CrossheadCM	3
65	48647	Rod, PlungerBBNP	3
70	46838	Seal, Oil, Crankcase - 70DNBR	3
87	48648	Washer, Flat (M10x24)S	3
90	121391	Plunger (M22x50)CC	3
98	46730	Washer, Seal - 90DNBR	3
100	46749	Retainer, SealPVDF	3
106	49644	Seal, Low-Pressure with SS-SpringNBR	3
120	121394	Case, SealBB	3
121	13980	O-Ring, Seal Case - 70DNBR	3
125	121395	Seal, High-Pressure with S-SupportSNG	3
162	43248	Backup Ring, SeatPTFE	6
163	43249	O-Ring, Seat - 80DNBR	6
164	44718	SeatS	6
166	43721	ValveS	6
167	43751	Spring, ValveS	6
168	44564	Retainer, SpringPVDF	6
172	17617	O-Ring, Valve Plug - 90DNBR	6
174	125214	Plug, ValveBBCP	6
185	49760	Manifold, HeadBBCP	1
188	126513	Screw, HSH (M8x70)STCP	8
500	8076	Gearbox 1" (See Individual Data Sheet) (Model 5CP5135CSSG1)	1
–	6110	Lube, Gear (16 oz bottle), 80w-140 (to fill 8071 Gearbox)	1
–	6124	Gasket, Liquid (3 oz. / 0,1 l)	1
–	22179	Plug, Inlet (1/2" NPT[M]) (Not Shown)	1
–	22187	Plug, Discharge (3/8" NPT[M]) (Not Shown)	1
–	30057	Key (M6 x 6 x 25)	1
–	30243	Mount, Direct (Belt-Drive Only)	1
–	30611	Assembly, Rail (4.22" See Dimensional Drawing)	1
–	30637	Mount, Rail Assembly (Retro Fit - See Tech Bulletin 078)	1
–	30645	Assembly, Rail (5.02" See Dimensional Drawing)	1
–	30696	Reverse Pliers (Not Shown)	1
–	34334	Kit, Oil Drain (3/8" x 24") (Not Shown) 1	1
–	48368	Crankshaft, Single End M16.5 - 5CP6180CSS, 5CP6180CSSG1FCM	1
–	76513	Assembly, Rail (5.52" See Dimensional Drawing)	1
–	118672	Protector, Shaft (Model 5CP5120)	1
–	127409	Cap, Vented with O-Ring (Rain Cap)	1
–	818460	Head, Complete - with NBR Seals and O-Rings	1
–	6132	Oil, Crankcase, Bottle 1l	1

in the request list covered by a requested kit

Seal and valve kits

A kit bundles the wearing parts of one assembly. Selecting it highlights the items it covers in the drawing and the parts list – once requested, they stay marked.

Seal kits

Seal kit

76620

NBR (STD)Medium Nitrile (Buna-N)

contains 4 items · one kit per pump
Parts list
- 98 46730 Washer, Seal 3×
- 106 49644 Seal, Low-Pressure with SS-Spring 3×
- 121 13980 O-Ring, Seal Case 3×
- 125 121395 Seal, High-Pressure 3×
Seal kit

76610

FPM (0.0110)Fluorocarbon

contains 4 items · one kit per pump
Parts list
- 98 48394 Washer, Seal 3×
- 106 49704 Seal, Low-Pressure with SS-Spring 3×
- 121 14330 O-Ring, Seal Case 3×
- 125 122188 Seal, High-Pressure 3×
Seal kit

76650

EPDM (0.0220)Ethylene Propylene Diene Monomer

contains 4 items · one kit per pump
Parts list
- 98 48432 Washer, Seal 3×
- 106 48650 Seal, Low-Pressure with SS-Spring 3×
- 121 49731 O-Ring, Seal Case 3×
- 125 122188 Seal, High-Pressure 3×
Seal kit

76616

HT (0.3000)Hi-Temp (EPDM Alternative)

contains 4 items · one kit per pump
Parts list
- 98 46730 Washer, Seal 3×
- 106 49644 Seal, Low-Pressure with SS-Spring 3×
- 121 13980 O-Ring, Seal Case 3×
- 125 122188 Seal, High-Pressure 3×

Valve kits

Valve kit

34920

NBR (STD)Medium Nitrile (Buna-N)

contains 7 items · 2 kits per pump
Parts list
- 162 43248 Stützring, Ventilsitz 3×
- 163 43249 O-Ring, Ventilsitz 3×
- 164 44718 Ventilsitz 3×
- 166 43721 Ventil 3×
- 167 43751 Feder, Ventil 3×
- 168 44564 Federhalter, Ventil 3×
- 172 17617 O-Ring, Ventilstopfen 3×
Valve kit

31256

FPM (0.0110)Fluorocarbon

contains 7 items · 2 kits per pump
Parts list
- 162 43248 Stützring, Ventilsitz 3×
- 163 44383 O-Ring, Ventilsitz 3×
- 164 44718 Ventilsitz 3×
- 166 43721 Ventil 3×
- 167 43751 Feder, Ventil 3×
- 168 44564 Federhalter, Ventil 3×
- 172 11691 O-Ring, Ventilstopfen 3×
Valve kit

31253

EPDM (0.0220)Ethylene Propylene Diene Monomer

contains 7 items · 2 kits per pump
Parts list
- 162 43248 Stützring, Ventilsitz 3×
- 163 46206 O-Ring, Ventilsitz 3×
- 164 44718 Ventilsitz 3×
- 166 43721 Ventil 3×
- 167 43751 Feder, Ventil 3×
- 168 44564 Federhalter, Ventil 3×
- 172 46207 O-Ring, Ventilstopfen 3×
