High Pressure Piston Pump
290
Hochdruck-Kolbenpumpe
290

Beschreibung
Diese Triplex-Verdrängerpumpe (drei Kolbenstangen) mit Hubkolben besteht aus einem verchromten Messing-Pumpenkopf, Ventilbaugruppen aus Edelstahl 304 und verchromten Hülsen und Zylindern aus Edelstahl 304. Mehrere Kolbenteller- und Dichtungskonfigurationen sind mit O-Ringen aus NBR (Buna-N) erhältlich.
Der Riemenantrieb mit niedriger Drehzahl sorgt für eine starke Ansaugung und eine lange Lebensdauer von Pumpe und Dichtungen.
Technische Spezifikationen
- Fördermenge13,2 l/min
- Betriebsdruck85 bar
- Drehzahl1200 min-1
- Sauganschluss1/2”
- Druckanschluss3/8” / 1/2”
- Material

Description

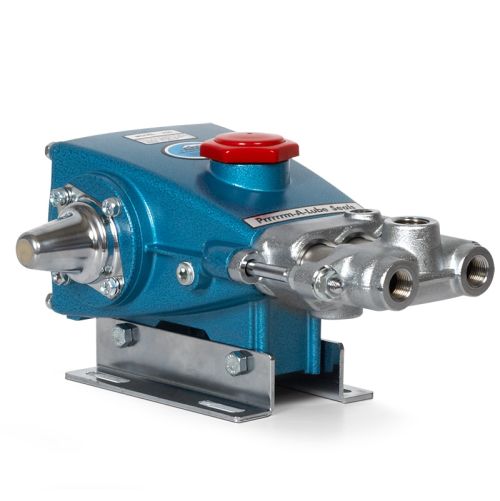

This triplex (three piston rods) positive displacement, reciprocating piston pump is constructed with chrome-plated brass manifolds, 304 stainless steel valve assemblies, and chrome-plated 304 stainless steel sleeves and cylinders. Multiple piston cup and seal configurations are available with NBR (Buna-N) O-rings.
The lower RPM belt drive design provides strong inlet suction and long-lasting pump and seal life.
Technical Specifications
- Flow13,2 l/min
- Max. pressure85 bar
- RPM1200 min-1
- Inlet Port Size1/2”
- Discharge Port Size3/8” / 1/2”
- Material
