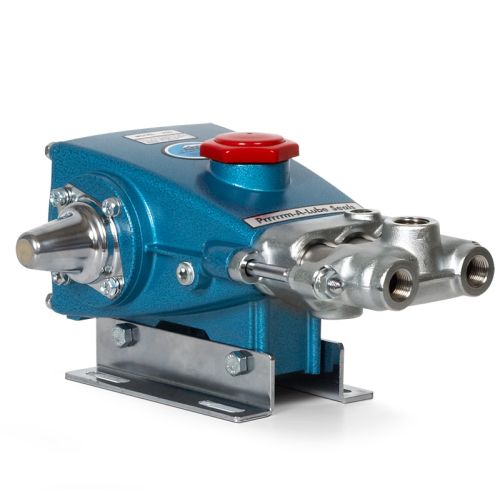

High Pressure Piston Pump
291

Hochdruck-Kolbenpumpe
291


Beschreibung

Diese Triplex (drei Kolbenstangen) Verdrängerkolbenpumpe ist mit einem Pumpenkopf aus Edelstahl 316, Ventilbaugruppen aus Edelstahl 304 und nicht verchromten Hülsen und Zylindern aus Edelstahl 304 ausgestattet. Mehrere Kolbenteller- und Dichtungskonfigurationen sind mit O-Ringen aus NBR (Buna-N) erhältlich.

Der Riemenantrieb mit niedriger Drehzahl sorgt für eine starke Ansaugung und eine lange Lebensdauer von Pumpe und Dichtungen.

Technische Spezifikationen

  • Fördermenge
    13,2 l/min
  • Betriebsdruck
    85 bar
  • Drehzahl
    1200 min-1
  • Sauganschluss
    1/2”
  • Druckanschluss
    3/8” / 1/2”
  • Material

Datenblatt

Reparaturanleitungen

Betriebsanleitung

CAD

Description

This triplex (three piston rods) positive displacement, reciprocating piston pump is constructed with 316 stainless steel manifolds, 304 stainless steel valve assemblies, and un-chromed 304 stainless steel sleeves and cylinders. Multiple piston cup and seal configurations are available with NBR (Buna-N) O-rings.

The lower RPM belt drive design provides strong inlet suction and long-lasting pump and seal life.

Technical Specifications

  • Flow
    13,2 l/min
  • Max. pressure
    85 bar
  • RPM
    1200 min-1
  • Inlet Port Size
    1/2”
  • Discharge Port Size
    3/8” / 1/2”
  • Material

Data Sheets

Service Manual

Operating Instructions

CAD Drawings
