High Pressure Plunger Pump · Frame size 60 PFR

67070 (Aussetzbetrieb)

Name: 67070 (Aussetzbetrieb)
Brand: CAT PUMPS
SKU: 67070 (Aussetzbetrieb)

This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with nickel aluminum bronze manifolds, 304 stainless steel valve assemblies, solid ceramic plungers and standard NBR (Buna-N) seals and O-rings.

Data sheet (PDF) Make an enquiry

Technical specifications

Flow rate	189 l/min
Operating pressure	207 bar
Speed	653 min⁻¹
Inlet port	2" NPT(F)
Discharge port	1 1/4" NPT(F)
Shaft diameter	45 mm
Material	Nickel-Aluminum-Bronze

Downloads

CAD files

Spare parts

Click an item in the drawing or in the parts list to add it to your request list. We turn it into a quotation – no order is placed.

2 kits bundle wearing parts of this pump ↓

Skip the drawing, go to the parts list

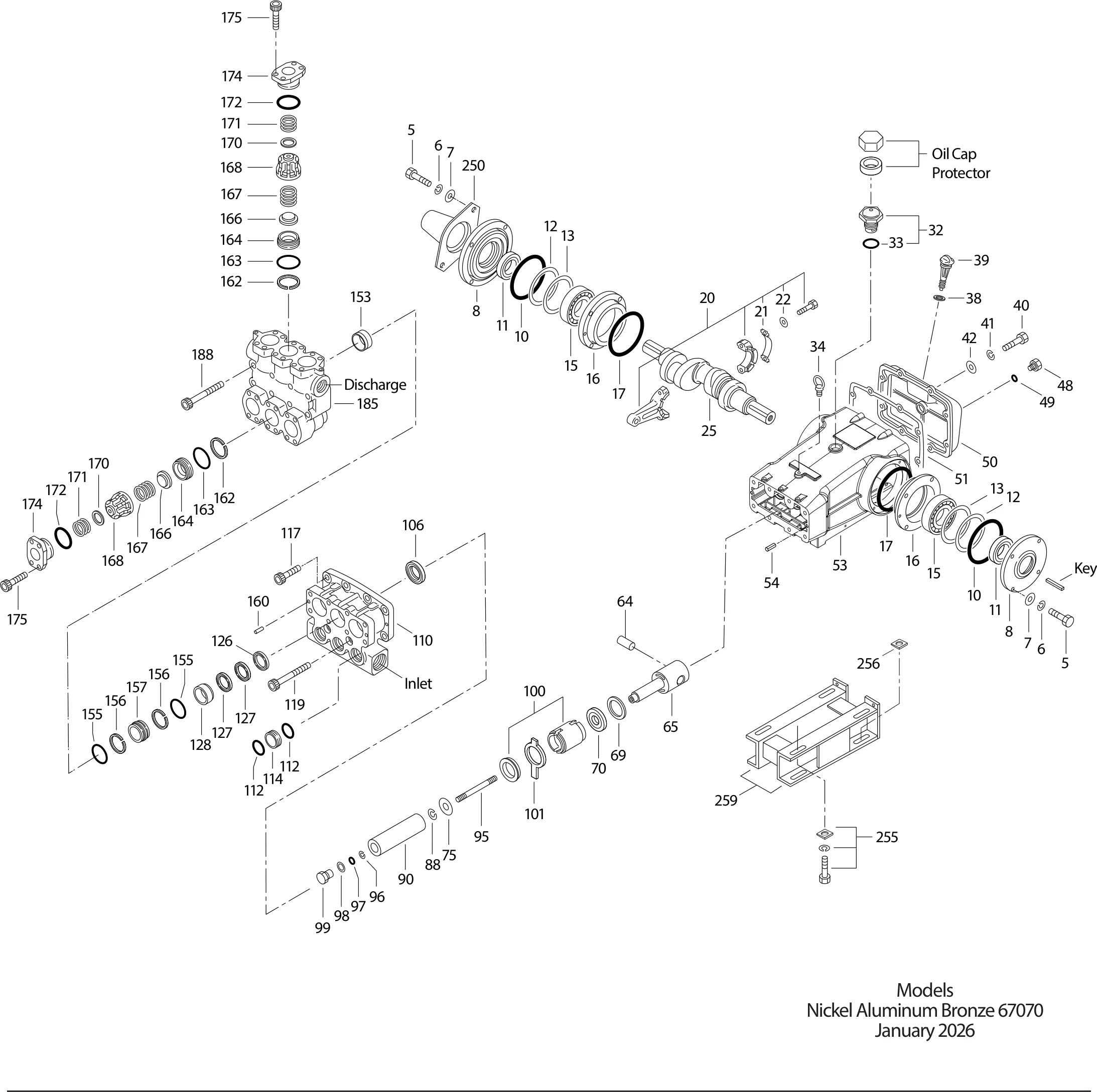

Exploded view 67070 (Aussetzbetrieb) — Exploded view

Parts list

Item	Part no.	Description	Qty
5	89728	Screw, HH (M10 x 40)S	8
6	15847	Lockwasher (M10)S	8
7	19934	Washer, Flat (M10)S	8
8	29443	Cover, Bearing, OuterALE	2
10	29444	O-Ring, Bearing Cover - 70DNBR	2
11	11443	Seal, Oil, Crankshaft - 70DNBR	2
12	126595	Washer, Shim (M120 x 0.5) 0 - 2STCP
13	126594	Washer, Shim (M120 x 0.3) 0 - 2STCP
15	29441	Bearing, RollerSTL	2
16	29442	Cover, Bearing, InnerSTL	2
17	29444	O-Ring, Bearing Cover - 70DNBR	2
20	126612	Assembly, Connecting Rod (Includes: 21, 22)BBHS	3
21	126560	Washer, LockingSTCP	3
22	126593	Washer, Flat (M10.5)STCP	6
25	29440	Crankshaft, Dual End (M65.5)FCM	1
32	43211	Cap, Oil FillerABS	1
33	14177	O-Ring, Oil Filler Cap - 70DNBR	1
34	126743	Bolt, Eye (M12x1.75) (For Lifting Pump Only)STCP	1
38	129343	Gasket, Flat FlexibleNBR	1
39	27769	Dip Stick (Blue)ABS	1
40	89627	Screw, HH (M10 x 30)S	8
41	15847	Lockwasher (M10)S	8
42	19934	Washer, Flat (M10)S	8
48	25625	Plug, Drain (1/4" x 19 BSP[M])STCP	1
49	23170	O-Ring, Drain Plug - 70DNBR	1
50	29438	Cover, RearALE	1
51	129386	Gasket, Rear CoverNBR	1
53	133667	Crankcase Assembly (Includes: 54)ALE	1
54	43282	Pin, GuideS	2
64	29481	Pin, CrossheadCM	3
65	133712	Rod, PlungerBBSS	3
69	126588	Washer, Oil SealSTCP	3
70	133716	Seal, Oil, CrankcaseNBR	3
75	134488	Slinger, BarrierSS	3
88	133719	Washer, KeyholeSS	3
90	134489	Plunger (M45 x 158)CC	3
95	134487	Stud, Plunger Retainer (M14 x 133)S	3
96	20214	Backup Ring, Plunger RetainerPTFE	3
97	49839	O-Ring, Plunger RetainerNBR	3
98	44751	Gasket, Plunger RetainerSS	3
99	44750	Retainer, Plunger (M14)SS	3
100	855041	Retainer, Seal, 2-PiecePVDF	3
101	45638	Wick (Long Tab)	3
106	134492	Seal, Low-Pressure, with SS - SpringNBR	3
110	133482	Manifold, InletNAB	1
112	12391	O-Ring, V-Packing Cylinder - 70DNBR	6
114	134498	Spacer, InletBB	3
117	121511	Screw, HSH (M16 x 50)S	6
119	89959	Screw, HSH (M16 x 120)S	2
126	134494	Adapter, FemalePTFE	3
127	134495	V-PackingSNG	6
128	134496	Adapter, MaleD	3
153	134506	Collar, InsertD	3
155	15856	O-Ring, V-Packing Spacer - 70DNBR	6
156	23115	Backup Ring, V-Packing SpacerPTFE	6
157	134497	Spacer, V-PackingBB	3
160	44756	Pin, Guide IMDMS	2
162	23115	Backup Ring, V-Packing SpacerPTFE	6
163	15856	O-Ring, V-Packing Spacer - 70DNBR	6
164	134501	SeatS	6
166	134503	ValveS	6
167	134502	SpringS	6
168	134504	Retainer, SpringPVDF	6
170	44776	Washer, RetainerSS	6
171	134505	Spring, CoilS	6
172	128857	O-Ring, Valve Plug - 90DNBR	6
174	133486	Plug, ValveNAB	6
175	133744	Screw, HSH (M16 x 30) Valve PlugS	24
185	133484	Manifold, DischargeNAB	1
188	89694	Screw, HSH (M16 x 110), UpperS	8
250	29445	Protector, Shaft (Included w/pump)ALE	1
255	33243	Mount, DirectSTZP	1
256	29649	Washer, Slant (M16) (Ensures Proper Alignment Between the Rail and Mounting Screw)STCP	4
259	126787	Rail, Box AssemblySTZP	1
–	12.40	(45) (14) 17.32
–	6124	Gasket, Liquid (3 oz. / 0,1 l)	1
–	6139	Lubricant, Anti-Seize (8 oz) (Model 1531)	1
–	30429	Oiler (10 oz) (Not Shown)	3
–	30696	Reverse Pliers (Not Shown)	1
–	32357	Crankcase Oil Seal Removal and Installation Kit (Not Shown)	1
–	34314	Kit, Oil Drain (3/8" x 48") (Not Shown)	1
–	43048	Key (M14 x 9 x 90) 1	1
–	88902	Stud (M16 x 277) For Removal of DM and IM) (Not Shown) 2	2
–	819010	Assembly, Crankcase, Cast Iron Conversion (Not Shown) 1	1
–	828710	Protector, Oil Cap with Foam Gasket 1	1
–	990014	Hub, "B", 45 mm (Not Shown)	1
–	6138	Oil, Crankcase, Can 5l	2

in the request listcovered by a requested kit

Seal and valve kits

A kit bundles the wearing parts of one assembly. Selecting it highlights the items it covers in the drawing and the parts list – once requested, they stay marked.

Seal kits

Seal kit
76452
NBR (STD)Medium Nitrile (Buna-N)
contains 9 items · one kit per pump
Parts list
- 9717616O-Ring, Plungerhalter3×
- 9749839O-Ring, Plunger Retainer3×
- 106134492Dichtung, Niederdruck, m/SS-Feder3×
- 11212391O-Ring, Distanzstück6×
- 127134495V-Packung6×
- 153134506Collar, Insert3×
- 155133733O-Ring, Distanzstück, V-Packung6×
- 15515856O-Ring, V-Packing Spacer6×
- 15623115Stützring, Distanzstück, V-Packung6×

Valve kits

Valve kit
76454
NBR (STD)Medium Nitrile (Buna-N)
contains 8 items · 2 kits per pump
Parts list
- 16223115Stützring, Ventilsitz6×
- 16315856O-Ring, Ventilsitz3×
- 164134501Ventilsitz3×
- 166134503Ventil3×
- 167134502Feder, Ventil3×
- 168134504Federhalter, Ventil3×
- 17044776Scheibe, Federhalter3×
- 172128857O-Ring, Ventilstopfen3×
