High Pressure Plunger Pump · Frame size 60 PFR 6775
This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with chrome-plated nickel aluminum bronze manifolds, 316 stainless steel valve assemblies, solid ceramic plungers and standard NBR (Buna-N) seals and O-rings.
Technical specifications
| Flow rate | 283.9 l/min |
|---|---|
| Operating pressure | 83 bar |
| Speed | 650 min⁻¹ |
| Inlet port | 2" NPT(F) |
| Discharge port | 1 1/4" NPT(F) |
| Shaft diameter | 45 mm |
| Material | Brass |
Downloads
CAD files
Spare parts
Click an item in the drawing or in the parts list to add it to your request list. We turn it into a quotation – no order is placed.
On the request list: 0 · for this pump: 0 Open request list →
6 kits bundle wearing parts of this pump ↓
Skip the drawing, go to the parts list

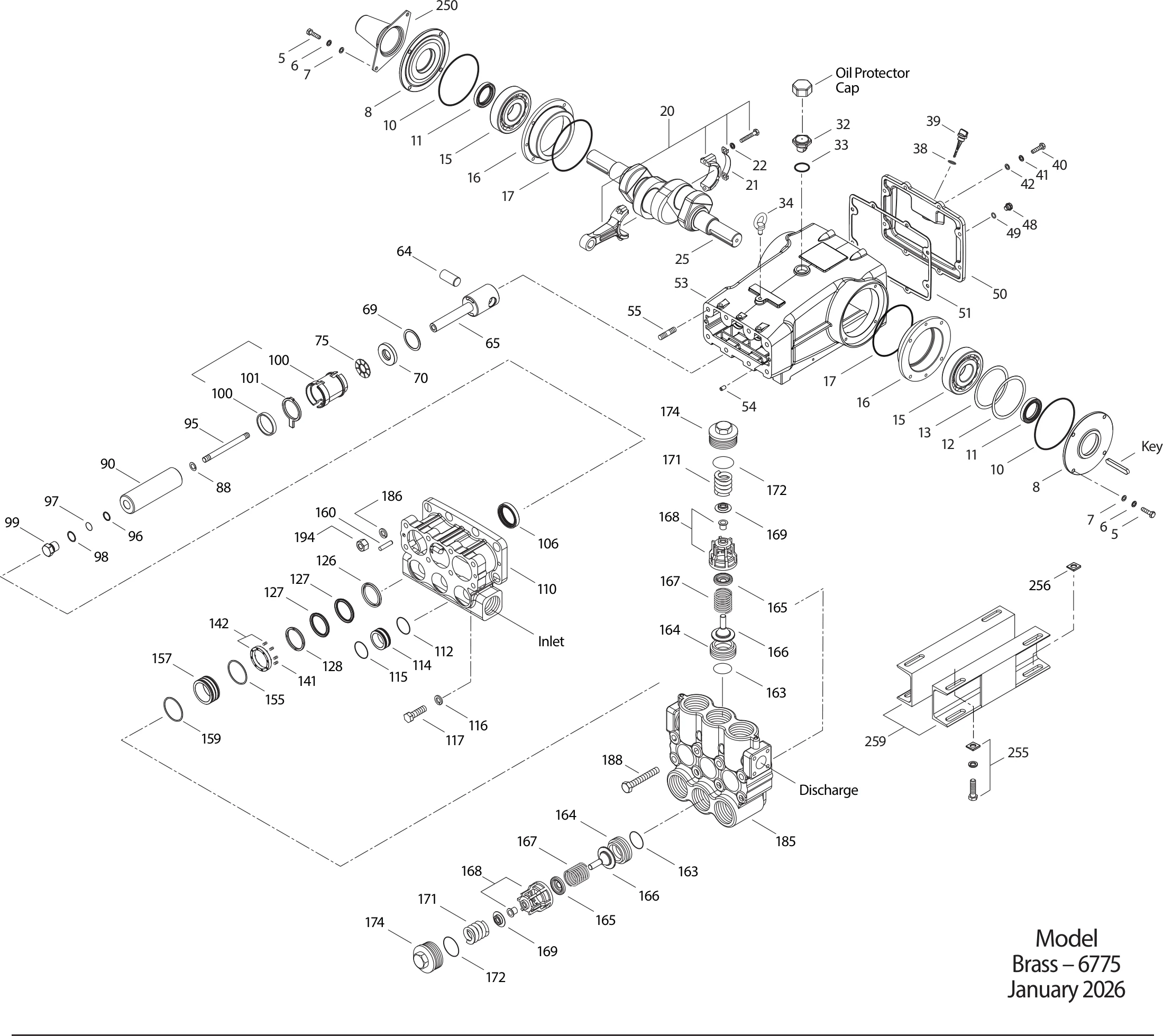

Exploded view
Parts list
| Item | Part no. | Description | Qty | Add to request list |
|---|---|---|---|---|
| 5 | 126532 | Screw, HH (M10x40)STCP | 8 | |
| 6 | 126231 | Lockwasher (M10)STCP | 8 | |
| 7 | 126574 | Washer, Flat (M10)STZP | 8 | |
| 8 | 29443 | Cover, Bearing, OuterALE | 2 | |
| 10 | 29444 | O-Ring, Bearing Cover - 70DNBR | 2 | |
| 11 | 11443 | Seal, Oil, Crankshaft - 70DNBR | 2 | |
| 12 | 126594 | Washer, Shim (M120 x 0.3) 0 - 2STCP | ||
| 13 | 126595 | Washer, Shim (M120 x 0.5) 0 - 2STCP | ||
| 15 | 29441 | Bearing, RollerSTL | 2 | |
| 16 | 29442 | Cover, Bearing, InnerSTL | 2 | |
| 17 | 29444 | O-Ring, Bearing Cover - 70DNBR | 2 | |
| 20 | 126612 | Assembly, Connecting Rod (Includes: 21, 22)BBHS | 3 | |
| 21 | 126560 | Washer, LockingSTCP | 3 | |
| 22 | 126593 | Washer, Flat (M10.5)STCP | 6 | |
| 25 | 29440 | Crankshaft, Dual End (M65.5)FCM | 1 | |
| 32 | 43211 | Cap, Oil FillerABS | 1 | |
| 33 | 14177 | O-Ring, Oil Filler Cap - 70DNBR | 1 | |
| 34 | 126743 | Bolt, Eye (M12x1.75) (For Lifting Pump Only)STCP | 1 | |
| 38 | 129343 | Gasket, Flat FlexibleRBR | 1 | |
| 39 | 27769 | Dip Stick (Blue)ABS | 1 | |
| 40 | 126531 | Screw, HH (M10x30)STCP | 8 | |
| 41 | 126231 | Lockwasher (M10)STCP | 8 | |
| 42 | 126574 | Washer, Flat (M10)STZP | 8 | |
| 48 | 25625 | Plug, Drain (1/4" x 19 BSP[M])STCP | 1 | |
| 49 | 23170 | O-Ring, Drain Plug - 70DNBR | 1 | |
| 50 | 29438 | Cover, RearALE | 1 | |
| 51 | 129386 | Gasket, Rear CoverNBR | 1 | |
| 53 | 133667 | Crankcase Assembly (Includes: 54)ALE | 1 | |
| 54 | 43282 | Pin, GuideS | 2 | |
| 55 | 126553 | Stud (M16 x 70)STCP | 2 | |
| 64 | 29481 | Pin, CrossheadCM | 3 | |
| 65 | 45384 | Rod, PlungerSSZZ | 3 | |
| 69 | 126588 | Washer, Oil SealSTCP | 3 | |
| 70 | 29454 | Seal, Oil, Crankcase - 80DNBR | 3 | |
| 75 | 44752 | Slinger, Barrier - 85DNBR | 3 | |
| 88 | 45677 | Washers, Keyhole (M14)SS | 3 | |
| 90 | 44749 | Plunger (M55 x 185)CC | 3 | |
| 95 | 89783 | Stud, Plunger Retainer (M14x147)S | 3 | |
| 96 | 20214 | Backup Ring, Plunger RetainerPTFE | 3 | |
| 97 | 49839 | O-Ring, Plunger RetainerNBR | 3 | |
| 98 | 44751 | Gasket, Plunger RetainerSS | 3 | |
| 99 | 45276 | Retainer, Plunger (M14)S | 3 | |
| 100 | 855000 | Retainer, Seal, 2-PiecePVDF | 3 | |
| 101 | 44762 | Wick, Long Tab (M55 x 185) | 3 | |
| 106 | 44757 | Seal, Low-Pressure with SS-SpringNBR | 3 | |
| 110 | 49457 | Manifold, InletNABC | 1 | |
| 112 | 18175 | O-Ring, Spacer, Inner - 80DNBR | 3 | |
| 114 | 44767 | Spacer, Inlet ManifoldSS | 3 | |
| 115 | 18175 | O-Ring, Spacer, Inner - 80DNBR | 3 | |
| 116 | 126569 | Lockwasher (M16)STCP | 4 | |
| 117 | 126537 | Screw, HH (M16x55)STCP | 4 | |
| 126 | 48392 | Adapter, FemaleD | 3 | |
| 127 | 44764 | V-PackingSTG | 6 | |
| 128 | 45772 | Adapter, MaleSS | 3 | |
| 141 | 44943 | Spring, Coil 18/24SS | 24 | |
| 142 | 48501 | Spacer with Coil SpringsBB | 3 | |
| 155 | 18178 | O-Ring, SpacerNBR | 3 | |
| 157 | 45321 | Spacer, V-PackingSS | 3 | |
| 159 | 18178 | O-Ring, SpacerNBR | 3 | |
| 160 | 44756 | Pin, Guide IMDMS | 2 | |
| 163 | 18176 | O-Ring, SeatNBR | 6 | |
| 164 | 44772 | SeatSS | 6 | |
| 165 | 76304 | Guide, SpringSS | 6 | |
| 166 | 76319 | Valve, GuidedSS | 6 | |
| 167 | 76309 | SpringSS | 6 | |
| 168 | 76349 | Retainer, SpringPVDF | 6 | |
| 169 | 76306 | Retainer, BushingSS | 6 | |
| 171 | 44780 | Spring, Coil, Valve PlugSS | 6 | |
| 172 | 128857 | O-Ring, Valve Plug - 90DNBR | 6 | |
| 174 | 49461 | Plug, Valve [3/00]NABC | 6 | |
| 185 | 49459 | Manifold, Discharge [3/00]NABC | 1 | |
| 186 | 126569 | Lockwasher (M16)STCP | 2 | |
| 188 | 126744 | Screw, HSH (M16x110)STCP | 8 | |
| 194 | 126525 | Nut, Hex (M16)STCP | 2 | |
| 250 | 29445 | Protector, Shaft (Included w/pump)ALE | 1 | |
| 255 | 33243 | Mount, DirectSTZP | 1 | |
| 256 | 29649 | Washer, Slant (M16) (Ensures Proper Alignment Between the Rail and Mounting Screw)STCP | 4 | |
| 259 | 126604 | Rail, Box (Included with Pump)STCP | 2 | |
| – | 6124 | Gasket, Liquid (3 oz. / 0,1 l) | 1 | |
| – | 6139 | Lubricant, Anti-Seize (8 oz) (Model 1531) | 1 | |
| – | 30429 | Oiler (10 oz) (Not Shown) | 3 | |
| – | 30696 | Reverse Pliers (Not Shown) | 1 | |
| – | 31173 | Crankcase Oil Seal Removal and Installation Kit (Not Shown) | 1 | |
| – | 34314 | Kit, Oil Drain (3/8" x 48") (Not Shown) | 1 | |
| – | 43048 | Key (M14 x 9 x 90) 1 | 1 | |
| – | 88902 | Stud (M16 x 277) For Removal of DM and IM) (Not Shown) 2 | 1 | |
| – | 819010 | Assembly, Crankcase, Cast Iron Conversion (Not Shown) 1 | 1 | |
| – | 828710 | Protector, Oil Cap with Foam Gasket 1 | 1 | |
| – | 990014 | Hub, "B", 45 mm (Not Shown) | 1 | |
| – | 996760 | Head, Complete, Block-Style with NBR Seals and O-Rings | 1 | |
| – | 6138 | Oil, Crankcase, Can 5l | 2 |
in the request list covered by a requested kit
Seal and valve kits
A kit bundles the wearing parts of one assembly. Selecting it highlights the items it covers in the drawing and the parts list – once requested, they stay marked.
Seal kits
-
Seal kit
34091
NBR (STD)Medium Nitrile (Buna-N)
contains 7 items · one kit per pump
Parts list
- 97 49839 O-Ring, Plungerhalter 3×
- 106 44757 Dichtung, Niederdruck, m/SS-Feder 3×
- 112 18175 O-Ring, Distanzstück, innen 3×
- 115 18175 O-Ring, Distanzstück, außen 3×
- 127 44764 V-Packung 6×
- 155 18178 O-Ring, Distanzstück 3×
- 159 18178 O-Ring, Distanzstück 3×
-
Seal kit
34093
FPM (0.0110)Fluorocarbon
contains 7 items · one kit per pump
Parts list
- 97 11686 O-Ring, Plungerhalter 3×
- 106 45882 Dichtung, Niederdruck, m/SS-Feder 3×
- 112 13266 O-Ring, Distanzstück, innen 3×
- 115 13266 O-Ring, Distanzstück, außen 3×
- 127 44764 V-Packung 6×
- 155 13338 O-Ring, Distanzstück 3×
- 159 13338 O-Ring, Distanzstück 3×
-
Seal kit
76091
EPDM (0.0220)Ethylene Propylene Diene Monomer
contains 7 items · one kit per pump
Parts list
- 97 703369 O-Ring, Plungerhalter 3×
- 106 702228 Dichtung, Niederdruck, m/SS-Feder 3×
- 112 702442 O-Ring, Distanzstück, innen 3×
- 115 702442 O-Ring, Distanzstück, außen 3×
- 127 44764 V-Packung 6×
- 155 701657 O-Ring, Distanzstück 3×
- 159 701657 O-Ring, Distanzstück 3×
Valve kits
-
Valve kit
76140
NBR (STD)Medium Nitrile (Buna-N)
contains 8 items · 2 kits per pump
Parts list
- 163 18176 O-Ring, Seat 3×
- 164 44772 Seat 3×
- 165 76304 Guide, Spring 3×
- 166 76319 Valve, Guided 3×
- 167 76309 Spring 3×
- 168 76349 Retainer, Spring 3×
- 169 76306 Retainer, Bushing 3×
- 172 128857 O-Ring, Valve Plug - 90D 3×
-
Valve kit
76145
FPM (0.0110)Fluorocarbon
contains 8 items · 2 kits per pump
Parts list
- 163 13278 O-Ring, Seat 3×
- 164 44772 Seat 3×
- 165 76304 Guide, Spring 3×
- 166 76319 Valve, Guided 3×
- 167 76309 Spring 3×
- 168 76349 Retainer, Spring 3×
- 169 76306 Retainer, Bushing 3×
- 172 13279 O-Ring, Valve Plug - 70D 3×
-
Valve kit
76240
EPDM (0.0220)Ethylene Propylene Diene Monomer
contains 8 items · 2 kits per pump
Parts list
- 163 702445 O-Ring, Seat 3×
- 164 44772 Seat 3×
- 165 76304 Guide, Spring 3×
- 166 76319 Valve, Guided 3×
- 167 76309 Spring 3×
- 168 76349 Retainer, Spring 3×
- 169 76306 Retainer, Bushing 3×
- 172 701988 O-Ring, Valve Plug 3×
