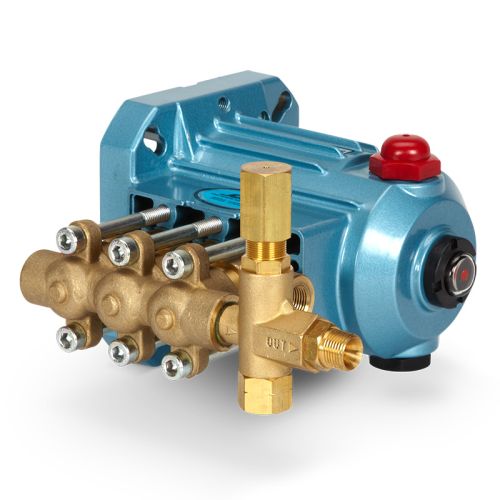

Hochdruck-Plungerpumpe
2SF13ES
High Pressure Plunger Pump
2SF13ES

Beschreibung
Es handelt sich um eine Triplex-Pumpe [drei Plunger] die aus einem Messing Pumpenkopf, 304SS-Ventilbaugruppen, massiven Keramikplungern und Standard-NBR [Buna-N]-Dichtungen und O-Ringen besteht. Es handelt sich um eine Pumpe mit Hohlwelle, die direkt mit einem Normmotor verschraubt werden kann, was eine einfache und kompakte Installation ermöglicht.
Technische Spezifikationen
- Fördermenge13 l/min
- Betriebsdruck90 bar
- Drehzahl2800 min-1
- Sauganschluss3/8"
- Druckanschluss3/8"
- MaterialMessing
Datenblatt
Reparaturanleitungen
Betriebsanleitung
CAD

Description
This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with brass manifolds, 304 stainless steel valve assemblies, solid ceramic plungers and standard NBR (Buna-N) seals and O-rings.
It is a hollow shaft pump that can be bolted directly to a standard motor for easy and compact installation.
Technical Specifications
- Flow13 l/min
- Max. pressure90 bar
- RPM2800 min-1
- Inlet Port Size3/8"
- Discharge Port Size3/8"
- MaterialBrass
